SPA-001T-P0.5 Compact high-conductivity secure latch easy crimp vibration-proof 26-22 AWG ideal for LED and auto interiors

SPA-001T-P0.5 Compact high-conductivity secure latch easy crimp vibration-proof 26-22 AWG ideal for LED and auto interiors

Features

• Current rating: up to 3 A

• Voltage rating: 250 V AC/DC

• Wire range: 26–22 AWG (0.13–0.33 mm²)

• Material: phosphor bronze with tin plating

• Contact design: box type with inner lance – reliable retention and low insertion force

• Crimp type: open-barrel – supports automatic or hand crimping

• Temperature range: -25°C to +85°C

• Compatible housings: SM series (e.g., SM02B-PASS-TBT, SM08B-PASS-TBT)

Applications

• LED lighting modules – strips, panels, and signage

• Industrial control systems – sensors, small drives, control panels

• Consumer electronics – smart home devices, battery packs, displays

• Automotive interior electronics – non-engine bay applications (dashboards, lights, switches)

• Prototyping and field repairs – easy wire replacement without rework station

Description

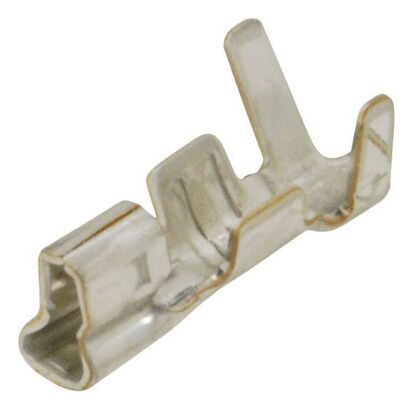

The SPA-001T-P0.5 is a crimp-style socket contact designed for use with 2.0 mm pitch wire-to-board connector housings (compatible with JST PA series). It features a phosphor bronze base material with tin plating, offering excellent conductivity and corrosion resistance. This terminal accepts 26 to 22 AWG wires and supports both discrete wire and jumper applications. Its box-shaped contact area with an internal lance provides secure mating retention and stable electrical performance in high-vibration environments.
