CSR1206FTR100 0.1mΩ ±1% 2W Current Sense Resistor 1206 Size <100ppm/°C TCR Solid Metal Element AEC-Q200 Qualified Excellent Stability for Precision Measurement

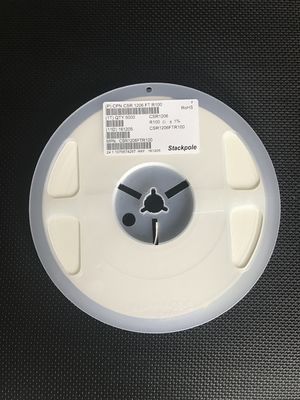

Gambar besar : CSR1206FTR100 0.1mΩ ±1% 2W Current Sense Resistor 1206 Size <100ppm/°C TCR Solid Metal Element AEC-Q200 Qualified Excellent Stability for Precision Measurement

Detail produk:

Tempat asal:	CINA
Nama merek:	Stackpole Electronics Inc.
Sertifikasi:	CE, GCF, ROHS
Nomor model:	CSR1206FTR100

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	negotiable
Kemasan rincian:	Dikemas dalam baki asli pertama, lalu karton, pada tas gelembung terakhir untuk pengemasan luar
Waktu pengiriman:	3-5 hari kerja setelah menerima pembayaran
Syarat-syarat pembayaran:	T/T, Serikat Barat,
Menyediakan kemampuan:	1000 pcs per bulan

Kontak

Detil Deskripsi produk

Fungsi:	Step-Up, Step-Down	Konfigurasi output:	Positif atau negatif
Topologi:	Buck, Boost	Jenis Keluaran:	Dapat disesuaikan
Jumlah output:	1
Menyoroti:	1206 current sense resistor 0.1mΩ , AEC-Q200 qualified current sense resistor , solid metal element precision resistor

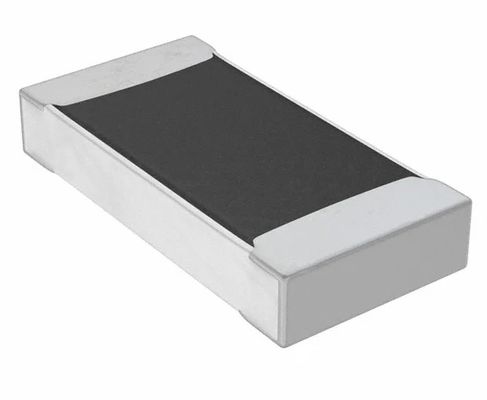

CSR1206FTR100 0.1mΩ ±1% 2W Current Sense Resistor

Product Description

The CSR1206FTR100 is a precision, surface-mount current sense resistor designed for accurately measuring electrical current by detecting a small voltage drop across its terminals. It utilizes a solid metal element technology to provide high stability and low resistance value.

Key Features

0201 to 1225 sizes available
Power ratings to 3 W
Available in E24 and other common values
E96 and other values may be available upon request
RoHS compliant, REACH compliant, lead free and halogen free
AEC-Q200 qualified
±100ppm/°C temperature coefficient
Excellent stability for precision measurement

Applications

Automotive Systems: Battery management systems (BMS), motor drives, power steering, and LED lighting control
Power Management: Overcurrent protection and load monitoring in DC-DC converters, voltage regulators, and switch-mode power supplies (SMPS)
Industrial Equipment: Motor drives, inverters, and welding equipment where high power and stability are required
Consumer Electronics: High-current charging systems, power tools, and desktop computers

Technical Specifications

Category	Resistors \| Chip Resistor - Surface Mount
Manufacturer	Stackpole Electronics Inc
Series	CSR
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Status	Active
Resistance	100 mOhms
Tolerance	±1%
Power Rating	0.5W, 1/2W
Composition	Thick Film
Features	Current Sense
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 155°C
Package/Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimensions	0.120" L x 0.061" W (3.05mm x 1.55mm)
Height	0.026" (0.65mm)
Terminations	2

Product Drawing

Our Advantages

High quality products - 100% new and original, ROHS compliant
Competitive price - Good purchase channels with excellent pricing
Professional service - Strict quality testing before shipment and perfect after-sales service
Adequate inventory - Supported by our strong purchasing team
Fast delivery - Shipment within 1-3 working days after payment confirmation

We provide comprehensive solutions for all your electronic component needs.

Product Portfolio

We supply a full range of electronic components including:

Integrated Circuits
Memory ICs
Diodes and Transistors
Capacitors and Resistors
Varistors, Fuses, and Trimmers
Transformers and Inductors
Batteries and Cables
Relays and Switches
Connectors and Terminal Blocks
Crystals & Oscillators
Sensors and IGBT Drivers
LEDs and LCDs
Converters
PCBs and PCB Assemblies

Strong Brand Partnerships

Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON, YAGEO, TDK, and more.
