SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

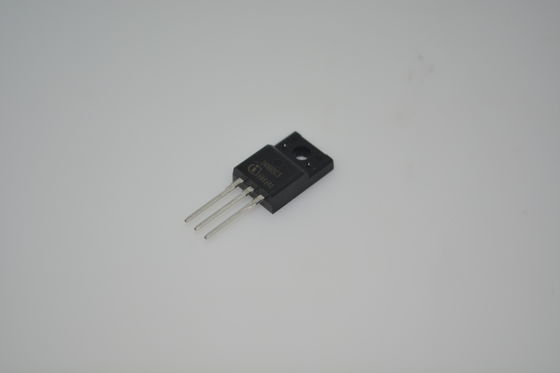

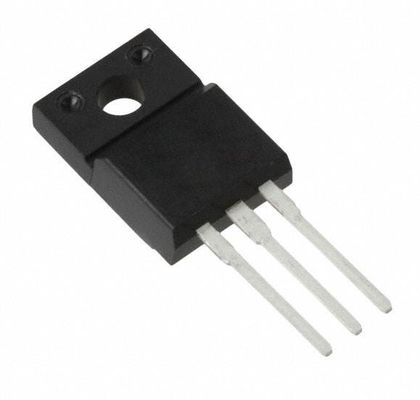

Gambar besar : SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Detail produk:

Tempat asal:	CINA
Nama merek:	Infineon
Sertifikasi:	CE, GCF, ROHS
Nomor model:	SPA04N80C3XKSA1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	negotiable
Kemasan rincian:	Dikemas dalam baki asli pertama, lalu karton, pada tas gelembung terakhir untuk pengemasan luar
Waktu pengiriman:	3-5 hari kerja setelah menerima pembayaran
Syarat-syarat pembayaran:	T/T, Western Union,
Menyediakan kemampuan:	1000 pcs per bulan

Kontak

Detil Deskripsi produk

Fungsi:	Step-Up, Step-Down	Konfigurasi output:	Positif atau negatif
Topologi:	Buck, Boost	Tipe output:	Bisa disesuaikan
Jumlah output:	1

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Features

New revolutionary high voltage technology

Extreme dv/dt rated

High peak current capability

Qualified according to JEDEC1) for target applications

Pb-free lead plating; RoHS compliant

Ultra low gate charge

Ultra low effective capacitances

Fully isolated package (2500 VAC; 1 minute)

Applications

1:Switch Mode Power Supplies (SMPS)

2:Power Factor Correction (PFC) circuits

3:Industrial motor drives and controls

4:Lighting ballasts and LED drivers

5:Renewable energy systems

Description

The SPA04N80C3XKSA1 is a high-voltage N-channel power MOSFET utilizing advanced super junction technology, delivering exceptional efficiency and reliability for demanding power conversion applications.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	3.9V @ 240µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-31
Package / Case	TO-220-3 Full Pack
Base Product Number	SPA04N80

Drawing

Our advantage :phones, PDA's, notebook comput.ers

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^

Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,

The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
