TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

CINA TOP Electronic Industry Co., Ltd. Sertifikasi
CINA TOP Electronic Industry Co., Ltd. Sertifikasi
Produk unggulan, kualitas bagus, harga kompetitif, layanan profesional, dengan kerjasama 10 tahun, sekarang kita menjadi teman baik satu sama lain.

—— Ronald-dari Boilvia

Sangat senang menemukan TOP sebagai mitra kami di China, di sini kita bisa mendapatkan Produk dan serice terbaik, mereka selalu menempatkan pelanggan di tempat pertama.

—— Carlos-dari Argentina

Saya sangat puas dengan semua layanan Anda. Ini benar-benar tim yang bagus! dengan tawaran solusi satu atap Anda, bantu kami menghemat banyak waktu dan uang

—— Giancarlo-dari Italia

I 'm Online Chat Now

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

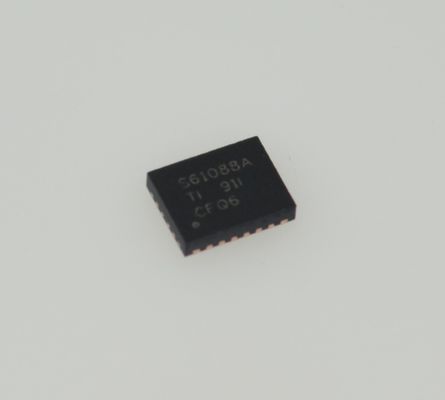

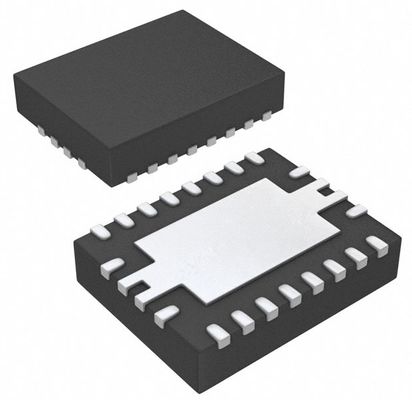

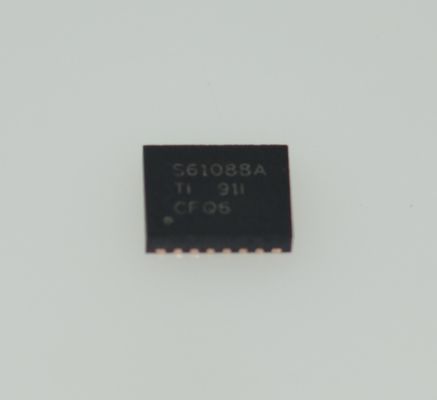

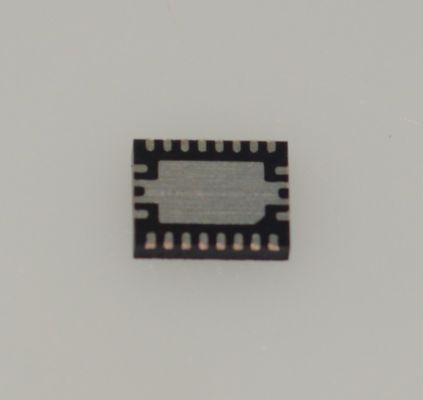

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

Gambar besar :  TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

Detail produk:
Tempat asal: CINA
Nama merek: Texas Instruments
Sertifikasi: CE, GCF, ROHS
Nomor model: TPS61088RHLR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: negotiable
Kemasan rincian: Dikemas dalam baki asli pertama, lalu karton, pada tas gelembung terakhir untuk pengemasan luar
Waktu pengiriman: 3-5 hari kerja setelah menerima pembayaran
Syarat-syarat pembayaran: T/T, Western Union,
Menyediakan kemampuan: 1000 pcs per bulan
Detil Deskripsi produk
Fungsi: Step-Up, Step-Down Konfigurasi output: Positif atau negatif
Topologi: Buck, Boost Tipe output: Bisa disesuaikan
Jumlah output: 1

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications



Features

• 2.7-V to 12-V input voltage range

• 4.5-V to 12.6-V output voltage range

• 10-A switch current

• Up to 91% efficiency at VIN = 3.3 V, VOUT = 9 V, and IOUT = 3 A

• Mode selection between PFM mode and forced PWM mode at light load

• 1.0-µA current into the VIN pin during shutdown

• Resistor-programmable switch peak current limit

• Adjustable switching frequency: 200 kHz to 2.2 MHz

• Programmable soft start

• Output overvoltage protection at 13.2 V

• Cycle-by-cycle overcurrent protection

• Thermal shutdown

• 4.50-mm × 3.50-mm 20-pin VQFN package



Applications

• Portable POS terminal

• Bluetooth™ speaker

• E-cigarette

• Thunderbolt interface

• Quick charge power bank



Description

The TPS61088 is a high-power density, fully integrated synchronous boost converter with a 11-mΩ power switch and a 13-mΩ rectifier switch to provide a high efficiency and small size solution in portable systems. The TPS61088 has a wide input voltage range from 2.7 V to 12 V to support applications with single-cell or two-cell Lithium batteries. The device has 10-A switch current capability and is capable of providing an output voltage up to 12.6 V.

The TPS61088 uses adaptive constant off-time peak current control topology to regulate the output voltage. In moderate to heavy load condition, the TPS61088 works in pulse width modulation (PWM) mode. In light load condition, the device has two operation modes selected by the MODE pin. One is the pulse frequency modulation (PFM) mode to improve the efficiency and another one is forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency in PWM mode is adjustable, ranging from 200 kHz to 2.2 MHz by an external resistor. The TPS61088 also implements a programmable soft-start function and an adjustable switching peak current limit function. In addition, the device provides 13.2-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

The TPS61088 is available in a 4.50-mm × 3.50-mm 20-pin VQFN package.



INFORMATION

Category
Mfr
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Function
Step-Up
Output Configuration
Positive
Topology
Output Type
Number of Outputs
1
Voltage - Input (Min)
2.7V
Voltage - Input (Max)
12V
Voltage - Output (Min/Fixed)
Voltage - Output (Max)
12.6V
Current - Output
Frequency - Switching
200kHz ~ 2.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
Supplier Device Package
20-VQFN (3.5x4.5)
Base Product Number



Drawing

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications 0
