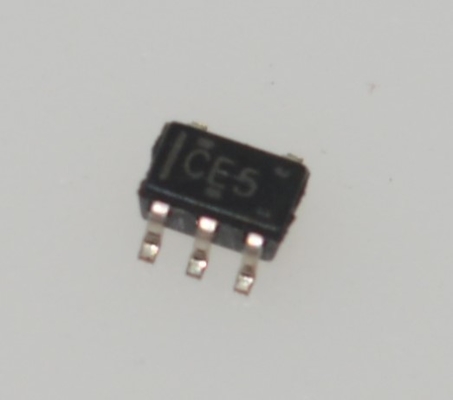

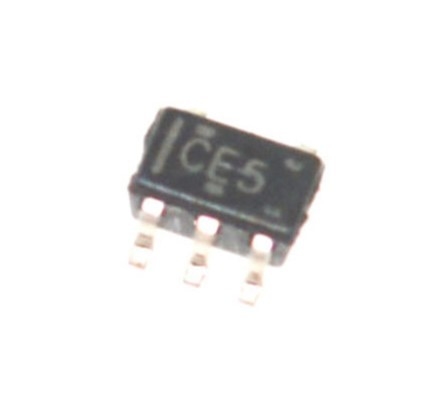

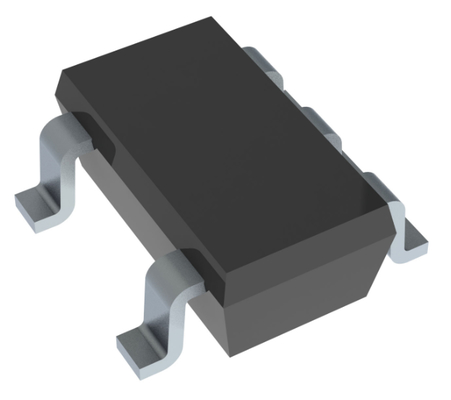

SN74LVC1G08DBVR Single 2-Input AND Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40°C to +125°C

SN74LVC1G08DBVR Single 2-Input AND Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40°C to +125°C

Features

• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Provides Down Translation to VCC

• Maxtpd of 3.6 ns at 3.3 V

• LowPower Consumption, 10-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESDProtection Exceeds JESD 22

 – 2000-V Human-Body Model (A114-A)

 – 200-V Machine Model (A115-A)

 – 1000-V Charged-Device Model (C101)

Applications

• ATCASolutions

• Active Noise Cancellation (ANC)

• Barcode Scanner

• Blood Pressure Monitor

• CPAPMachine

• Cable Solutions

• DLP3DMachine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy

• E-Book

• Embedded PC

• Field Transmitter: Temperature or Pressure Sensor

• Fingerprint Biometrics

• HVAC:Heating, Ventilating, and Air Conditioning

• Network-Attached Storage (NAS)

• Server Motherboard and PSU

• Software Defined Radio (SDR)

• TV:High-Definition (HDTV), LCD, and Digital

• Video Communications System

• Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card

• X-ray: Baggage Scanner, Medical, and Dental

Description

This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G08 device performs the Boolean function or inpositivelogic.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G08 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
