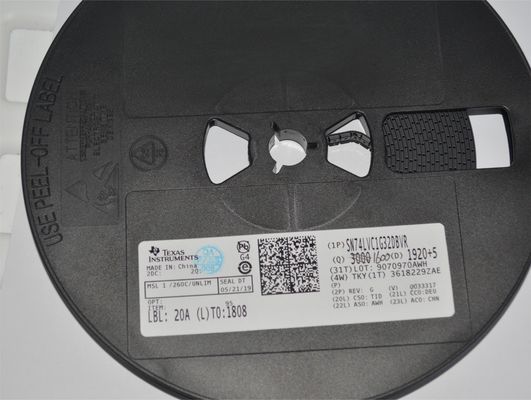

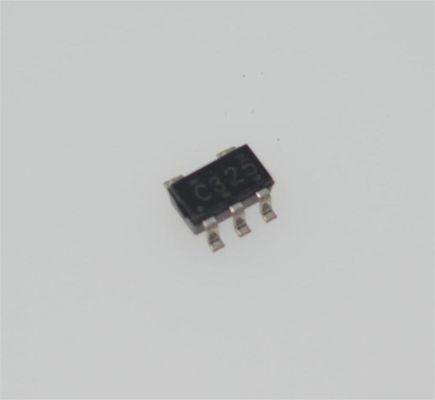

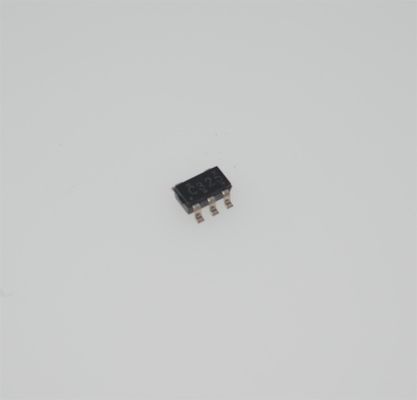

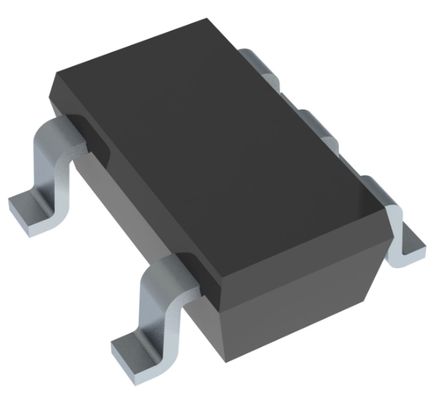

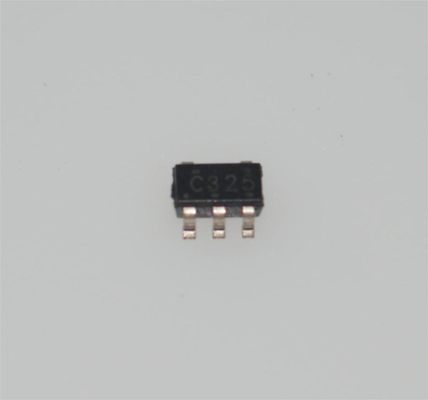

SN74LVC1G32DBVR Single 2-Input OR Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40°C to +125°C

SN74LVC1G32DBVR Single 2-Input OR Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40°C to +125°C

Features

• Available in the Ultra-Small 0.64 mm2 Package (DPW) with 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5-V

• Supports Down Translation to VCC

• Maxtpd of 3.6 ns at 3.3-V

• LowPower Consumption, 10-µA Max ICC

• ±24-mA Output Drive at 3.3-V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESDProtection Exceeds JESD 22– 2000-V Human-Body Model (A114-A)– 200-V Machine Model (A115-A)– 1000-V Charged-Device Model (C101)

Applications

• AVReceiver

• Blu-ray Player and Home Theater

• Digital Picture Frame (DPF)

• Embedded PC

• IPPhone: Wireless

• High-Speed Data Acquisition and Generation

• Motor Control: High-Voltage

• Optical Networking: Video Over Fiber and EPON

• Personal Navigation Device (GPS)

• Portable Media Player

• Private Branch Exchange (PBX)

• Server PSU

• SSD: Internal and External

• TV:LCD/Digital and High-Definition (HDTV)

• Telecom Shelter: Power Distribution Unit (PDU), Power Monitoring Unit (PMU), Wireless Battery Monitoring, Remote Electrical Tilt Unit (RET), Remote Radio Unit (RRU), Tower Mounted Amplifier (TMA)

• Video Conferencing: IP-Based HD

• Vector Signal Analyzer and Generator

• WiMAXandWireless Infrastructure Equipment

• Wireless Headset, Keyboard, Mouse, and Repeater

Description

This single 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G32 device performs the Boolean function inpositivelogic. Y = A + B or Y = • A B The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G32 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 × 0.8 mm.

INFORMATION

Drawing
