AK5358AET 24-bit 96kHz ADC 102dB SNR Low Power, I2S Output -40°C to +85°C Compact 16-TSSOP

AK5358AET

Description

The AK5358A is a stereo A/D Converter with wide sampling rate of 8kHz ~ 96kHz and is suitable forconsumer to professional audio system. The AK5358A achieves high accuracy and low cost by usingEnhanced dual bit Az techniques. The AK5358A requires no external components because the analognputs are single-ended. The audio interface has two formats (MSB justified, iS) and can correspond tovarious systems like DTV, DVR and AV Receiver.

Features

Linear Phase Digital Anti-Alias Filtering

Single.ended input
Digital HPF for Dc.Offset cancel
S/(N+D):92dB
O DR:102dB
O S/N:102dB
Sampling Rate Ranging from 8kHz to 96kHz

Master Clock:
  256fs/384fs1512fs1768fs(8kHz~48kHz)

  256fs/384fs(48kHz ~ 96kHz)
Input level: TTL/CMOS

Master / Slave Mode
Audio Interface: 24bit MsB justified / I2s selectable

Power supply: 4.5~5.5V (Analog), 2.7~5.5V (Digital)

Ta=-20~85°C

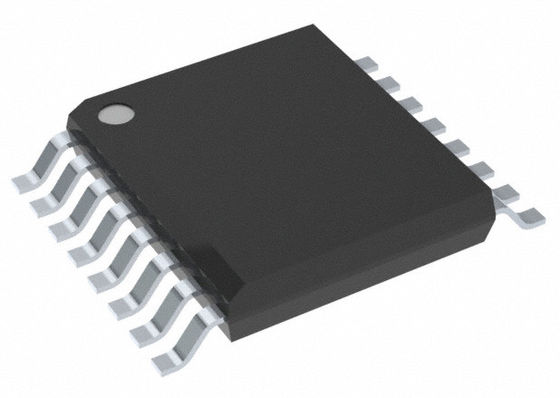

Small 16pin TSSOP Package

AK5357/59/81 Pin-compatible

Information

Drawing
